Description

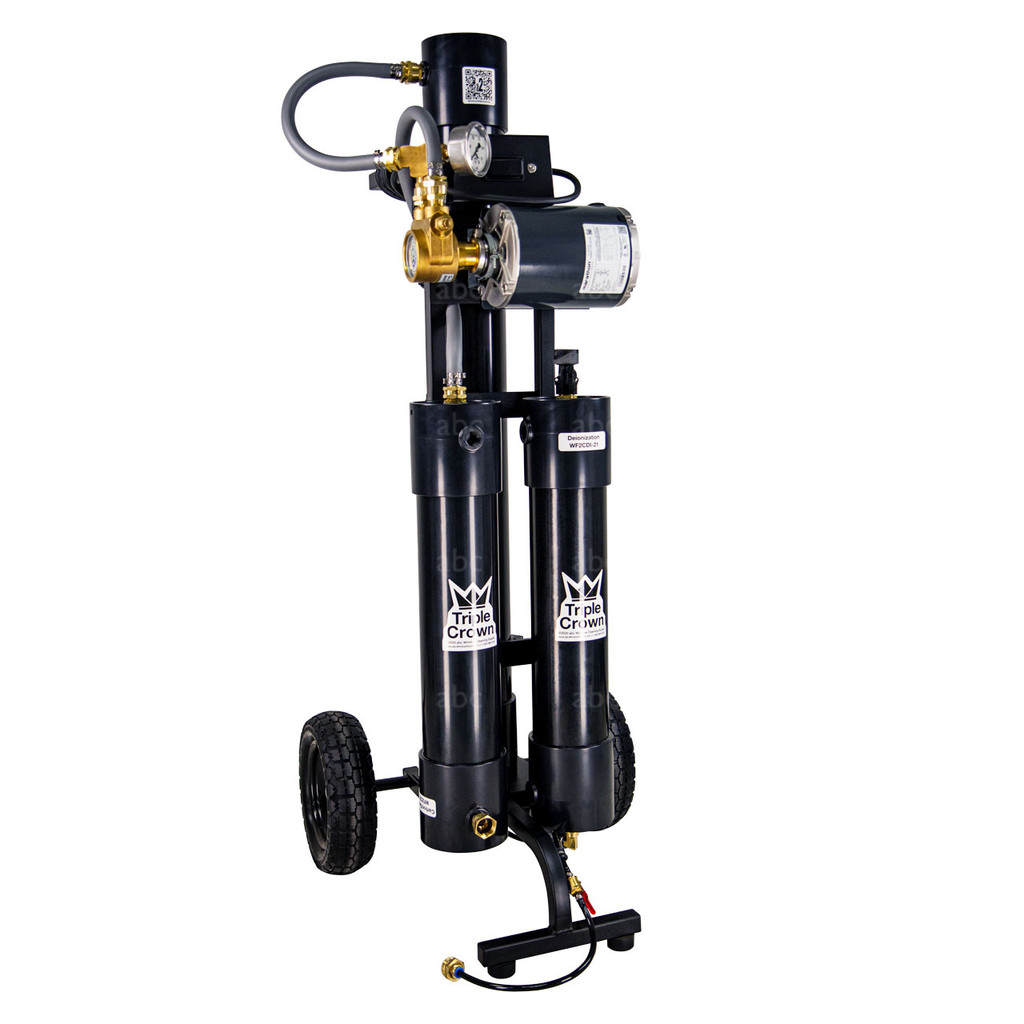

Triple Crown SG2 WaterFed® Pure Water Window Cleaning System

The Triple Crown SG2 WaterFed® Cart provides excellent pure water production and is easily maneuverable in close quarters. This AC powered unit produces 2.500 gallons of pure water per minute.

This RO DI WaterFed® System was designed to operate with a range of source water conditions. The core of this pure water cleaning system's filtration is a replaceable RO membrane. The membrane allows the unit to process higher than average TDS and contributes to a low cost per gallon for pure water production. The DI filter can be bypassed for RO only operation in situations where water quality is high enough to produce water with less than 10 TDS. The RO only operation allows those cleaning solid surfaces to produce water with 40 TDS or less from source water without using a DI filter. The unit also features a rapid drain which allows the user to reduce the overall weight of the unit when lifting this pure water window cleaning system into their vehicle at the end of the day.

This WFP System is equipped with a durable powder coated steel frame with 10-inch run flat tires making it very portable. It is easily transferred into and out of a work van by one person. The larger wheels and wide stance allows it to be easily transported over a variety of landscaping materials. The unit comes equipped with an AC powered pump capable of producing up to 2.500 gallons per minute of pure water, but can be run without a pump with sufficient source water pressure. Perfect for frequent use cleaning 1-6 stories. Triple Crown systems are top quality and sold manufacturer direct, saving you money! abc stocks and supports all parts.

1. 50”H x 20”W x 21”D - 90lbs
2. Multi-Filter System.
3. Durable Steel Frame. AC Powered Pump.
4. All Parts Stocked And Supported By abc!

Filters

• WF2CSC-21 -- (1) - 21-inch Carbon/Sediment Filter Cartridge
• WF3CRO-40 -- (1) - 40-inch RO Filter Cartridge
• WF2CDI-21 -- (1) - 21-inch DI Filter Cartridge

Resources

• SG2 Quick Start Guide Video
• SG2 Filter Change Video
• SG2 Guia De Inicio Rapido Video
• SG2 Written Quick Start Guide
• SG2 Written Manual
• -----
• SG2 Quick Start Guide Video (Before 2018)
• SG2 Filter Change Video (Before 2018)
• SG2 Written Quick Start Guide (Before 2018)
• SG2 Quick Start Guide Video (Before 2018)

Replacement Parts

• WF65000-WH -- Wheel

• WF7000-RF -- Replacement Feet

• WF601311 -- Shut-off Valve

• HMTDS-3 -- TDS Meter
• TA-PG -- PSI Pressure Gauge
• TA-NXT-PUMP5 -- Pump
• WF7000-SGM -- 3/4 HP Motor
• TA-RO-200588 --  Replacement Saddle Clamp

Accessories

• WF7000-OSK -- Outlet Splitter Kit

Included With Purchase

• SG2 System With Filters
• 1 Inline Pressure Gauge
• 16" Connection Hose
• TDS Meter
• Shutoff Valve
• Owner's Manual

General Safety

DANGER:

The motor is non-submersible. Keep the motor dry at all times. Protect the motor from wet weather. Do not allow any part of the cord or receptacle ends to sit in water or in damp conditions. All wiring must be performed by a qualified electrician. The motor must be installed in compliance with all local national codes. Risk of electrical shock! This motor is supplied with a ground conductor and grounding attachment plug. Never remove the grounding prong on the power cord. Removal of grounding prong will make the pump unsafe to operate and increases the risk of fatal electric shock. This motor is supplied with a GFCI attachment. Do not operate this motor without GFCI protection. Do not operate the motor with a damaged power cord. Only pump clear, Non-salt water. Never run the pump dry.
